MNP-venus-ep-cut

Contact us

VENUS EP CUT is neat cutting oil, used in the processing stage requires high lubricity and extreme pressure: machine tap, gear boring - milling - grinding, broaching, deep drilling, grinding groove…

Characteristics

  • Excellent lubricity and extreme pressure, help to surface machining without ridges, smooth, prolong lifespan of tool and possibility of equipment exactly absolute.
  • Evaporation and atomization low, avoid loss of oil and dispersed into the outside environment.
  • Good thermal stability and oxidation resistance help to prolong lifespan of oil and cost savings.

Technical Standards

ISO 6743 -7 - MHE, DIN 51385 - SNPC.

Applications

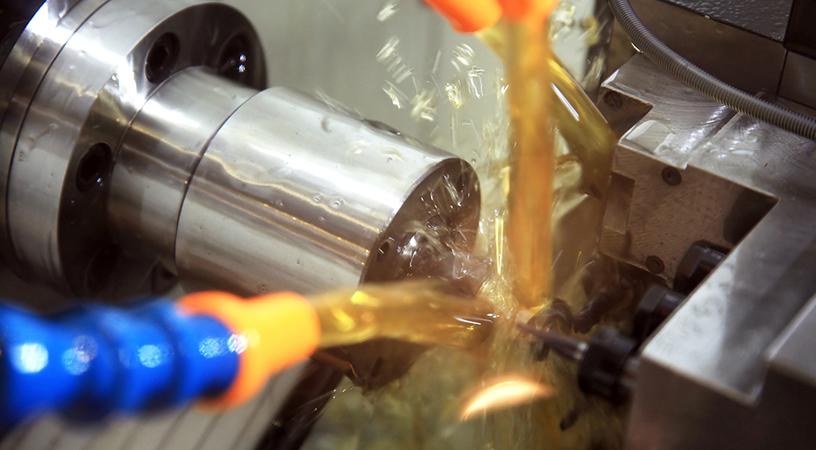

Designed for use in automatic lathes, semi-automatic lathes, CNC machines… when machining steel, alloy steel, ferrous and non-ferrous with the machining process: machine tap, gear boring - milling - grinding, broaching, deep drilling, grinding groove…

Technical Data

Technical specifications Test methods 32 46 68
Density at 15oC (Kg/l) ASTM D 4052 0.84-0.88 0.84-0.88 0.84-0.88
Kinematic viscosity at 40oC (mm2/s) ASTM D 445 28-32 44-50 68-73
Viscosity index (VI) ASTM D 2270 Min 100 Min 100 Min 100
Pour point (oC) ASTM D 97 Max -15 Max -12 Max -12
Flash point COC (oC) ASTM D 92 Min 200 Min 200 Min 220
Copper strip corrosion, (3h , 100oC) ASTM D 130 Max 1b Max 1b Max 1b

(These characteristics are typical of current production, not constitute specifications).

Preservation and Safety

  • Storage in a covered warehouse.
  • Store temperature should not exceed 60oC.
  • Keep off sparks and flammable materials. Storage must be covered carefully and away from the risk of contamination.
  • Used oil must be treated properly, don’t pour directly into ditches , water sources.

Packing

  • Can, bucket of 18 Liter, 25 Liter, Drum of 200 Liter.
  • Or package meets to customer’s requirements.
