Quata ATF IV
18L 25L 200L
Quata ATF VI
18L 25L 200L

Quata ATF is made from super quality base oils has high viscosity index (VI) with advanced additive systems, appropriate to use in means of transportation automatic transmission systems to meet the following specifications: GM, Mercon, Toyota,…

Characteristics

  • Due to high viscosity index, maintaining continuously film oil.
  • Extreme pressure additive help to anti-wear the equipments, spare parts in the automatic transmission systems in severe operation conditions.
  • Excellent oxidation resistance and high thermal stability.

Specifications and Approvals

  • Quata ATF III: Dexron II, Dexron III, Ford Mercon, Allison C-4.
  • Quata ATF IV: Dexron III, Toyota T-IV, Ford Mercon, Allison C-4.
  • Quata ATF VI: Dexron VI, Mercon V, Mercon LV.

Applications

  • Used in the automatic transmission systems of means of transportation: passenger car, truck,…or in the heavy industries.
  • Used in the power steering systems.

Technical Data

Technical specifications Test methods ATF III ATF IV ATF VI
Color - Red Red Red
Density at 15oC (Kg/l) ASTM D 4052 0.84-0.86 0.84-0.86 0.84-0.86
Kinematic viscosity at 40oC (mm2/s) ASTM D 445 36-40 38-42 40-46
Viscosity index (VI) ASTM D 2270 Min 140 Min 140 Min 140
Pour point (oC) ASTM D 97 Max -42 Max -45 Max -45
Flash point COC (oC) ASTM D 92 Min 180 Min 180 Min 180

(These characteristics are typical of current production, not constitute specifications).

Preservation and Safety

  • Storage in a covered warehouse.
  • Store temperature should not exceed 60oC.
  • Keep off sparks and flammable materials. Storage must be covered carefully and away from the risk of contamination.
  • Used oil must be treated properly, don’t pour directly into ditches , water sources.

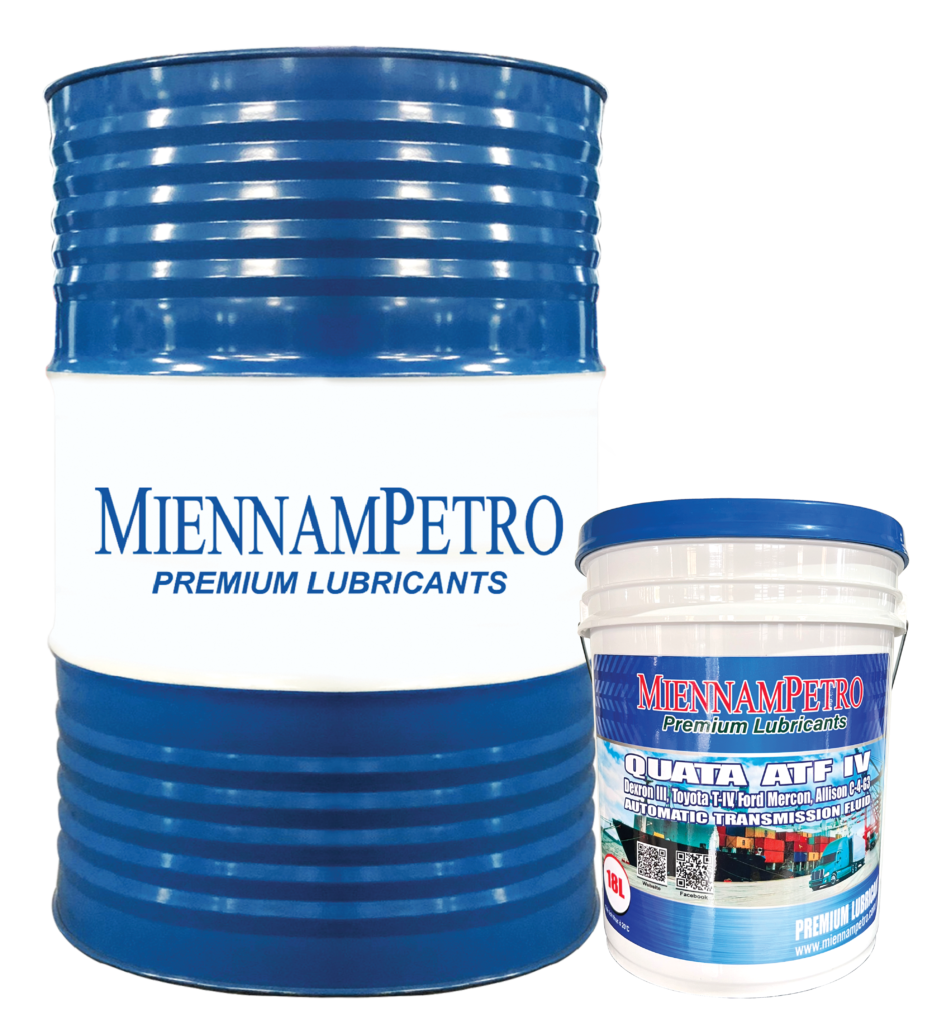

Packing

  • Can, bucket of 18 Liter, 25 Liter, Drum of 200 Liter.
  • Or package meets to customer’s requirements.
